ZEN SPINDEL AFFORDABLE HIGH - SPEED SPINDLES
BECAUSE, DOWNTIME SHOULD BE YOUR ONLY COST!
INTEGRAL MOTOR SPINDLES
Made in India | 25 Years of Expertise | Performance You Can Trust
At ZENSPINDLE, we engineer excellence. With over 25 years of proven experience in spindle design and manufacturing, we bring to market a new generation of Integral Motor Spindles that combine innovation, reliability, and cost-efficiency. Designed and manufactured entirely in India, our spindles are tailored to meet the evolving demands of modern machining and automation.
Advantages
- Quick acceleration and deceleration,
- Less moving mass due to lesser weight of motor,
- Good surface finish (due to better balancing) and high rotational speed
- Enabling faster machini ng and improved productivity,
- Higher energy efficiency due to less power loss, reducing operational costs
CTS (Coolant Through Spindle) function is standard due to the simpler interface of the Rotary Union.

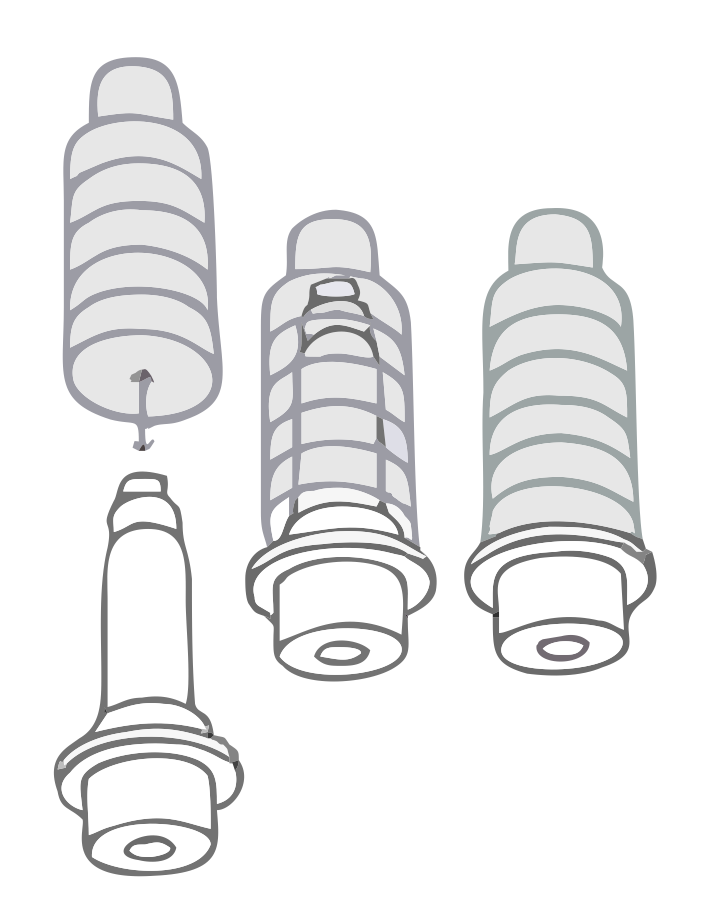

Design Theme
- Spindle can run with Fanuc/ Mitsubishi controller & drives
- 2 x Angular contact bearings at the front (bigger ball bearings) and 2 x Angular contact bearings at rear
- Cartridge type design (benefits customers and MTB’s to have low-cost service spindles
- No need to remove the stator for bearing failures
Product Info
Engineered for demanding applications, our High-Performance Spindles are equipped with advanced features such as bearing temperature sensors and an integral hydraulic cylinder for enhanced monitoring and control. Perfect for high-speed and precision-intensive operations.
Key Benefits :
- Enhanced thermal monitoring for extended spindle life
- Integral hydraulic cylinder for improved clamping/unclamping control
- Built for high-speed, high-precision machining environments
Product Gallery
Information
Model No.
Spindle Taper
Max. Speed (rpm)
Clamping Force (kgs)
Front Bearing(mm)
Rear Bearing(mm)
Lubrication
Rated Torque (N-m)
Base Speed (rpm)
Rated Power(kW)
Voltage (V)
Jacket Cooling
Uncl. Pressure(bar)
rpm
kgs
mm
mm
N-m
rpm
kW
V
bar
A30TH1217A
BBT40
12,000
900
80
60
Grease
95.5
1500
15 / 18
220
Yes , Oil / Water
40 – 60 bar , hydraulic
A32TH1517A
BBT40
15,000
900
80
60
Oil – Air
95.5
1500
15 / 18
220
Yes , Oil / Water
40 – 60 bar , hydraulic
A32TH1525A
HSK A63
15,000
1,800
80
60
Oil – Air
95.5
1500
15 / 18
220
Yes , Oil / Water
40 – 60 bar , hydraulic
A32TH2017A
BBT40
20,000
900
70
55
Oil – Air
45.7
2300
11 / 15
220
Yes , Oil / Water
40 – 60 bar , hydraulic
A32TH2025A
HSK A63
20,000
1,800
70
55
Oil – Air
45.7
2300
11 / 15
220
Yes , Oil / Water
40 – 60 bar , hydraulic
A32TH2425A
HSK A63
24,000
1,800
70
55
Oil – Air
45.7
2300
11 / 15
220
Yes , Oil / Water
40 – 60 bar , hydraulic
Model No.
Spindle Taper
Max. Speed
rpm
Clamping Force
kgs
Front Bearing
mm
Rear Bearing
mm
Lubrication
Rated Torque
N-m
Base Speed
rpm
Rated Power
kW
Voltage
V
Jacket Cooling
Uncl. Pressure
bar
Model No.
A30TH1217A
Spindle Taper
BBT40
Max. Speed
12,000
Clamping Force
900
Front Bearing
80
Rear Bearing
60
Lubrication
Grease
Rated Torque
95.5
Base Speed
1500
Rated Power
15 / 18
Voltage
220
Jacket Cooling
Yes , Oil / Water
Uncl. Pressure
40 – 60 bar , hydraulic
Model No.
A32TH1517A
Spindle Taper
BBT40
Max. Speed
15,000
Clamping Force
900
Front Bearing
80
Rear Bearing
60
Lubrication
Oil – Air
Rated Torque
95.5
Base Speed
1500
Rated Power
15 / 18
Voltage
220
Jacket Cooling
Yes , Oil / Water
Uncl. Pressure
40 – 60 bar , hydraulic
Model No.
A32TH1525A
Spindle Taper
HSK A63
Max. Speed
15,000
Clamping Force
1,800
Front Bearing
80
Rear Bearing
60
Lubrication
Oil – Air
Rated Torque
95.5
Base Speed
1500
Rated Power
15 / 18
Voltage
220
Jacket Cooling
Yes , Oil / Water
Uncl. Pressure
40 – 60 bar , hydraulic
Product Info
For customers seeking value without compromise, our ECO Spindle series offers a cost-effective solution that delivers dependable performance for standard applications. Built with precision and quality, this spindle is ideal for general-purpose machining where affordability and functionality go hand in hand.
Key Benefits :
- Economical pricing
- Robust design for standard operations
- Low maintenance and high reliability
Product Gallery
Information
Model No.
Spindle Taper
Max. Speed (rpm)
Clamping Force (kgs)
Front Bearing (mm)
Rear Bearing (mm)
Lubrication
Rated Torque (N-m)
Base Speed (rpm)
Rated Power (kW)
Voltage (V)
No. of Poles
Jacket Cooling
Uncl. Pressure (bar)
rpm
kgs
mm
mm
N-m
rpm
kW
V
bar
A40TH1217B
BBT40
12,000
900
65
60
Grease
75.7
2300
18 / 21
220
6
Yes , Oil / Water
4 - 5 bar , Pneumatic
A42TH1817B
BBT40
18,000
900
65
60
Oil – Air
75.7
2300
18 / 21
220
6
Yes , Oil / Water
4 - 5 bar , Pneumatic
A40TH1225A
HSK A63
12,000
1,800
65
60
Grease
75.7
2300
18 / 21
220
6
Yes , Oil / Water
4 - 5 bar , Pneumatic
A42TH1825B
HSK A63
18,000
1,800
65
60
Oil – Air
75.7
2300
18 / 21
220
6
Yes , Oil / Water
4 - 5 bar , Pneumatic
Product Info
Designed specifically for the Special Purpose Machine (SPM) market, these spindles are tailor-made to meet unique customer requirements at an affordable cost. Whether it’s a custom interface, non-standard dimensions, or special speed/load conditions – ZENSPINDLE SPM spindles deliver flexibility with performance.
Key Benefits :
- Fully customizable as per client specifications
- Cost-effective solutions for niche applications
- Optimized for integration into various SPMs
