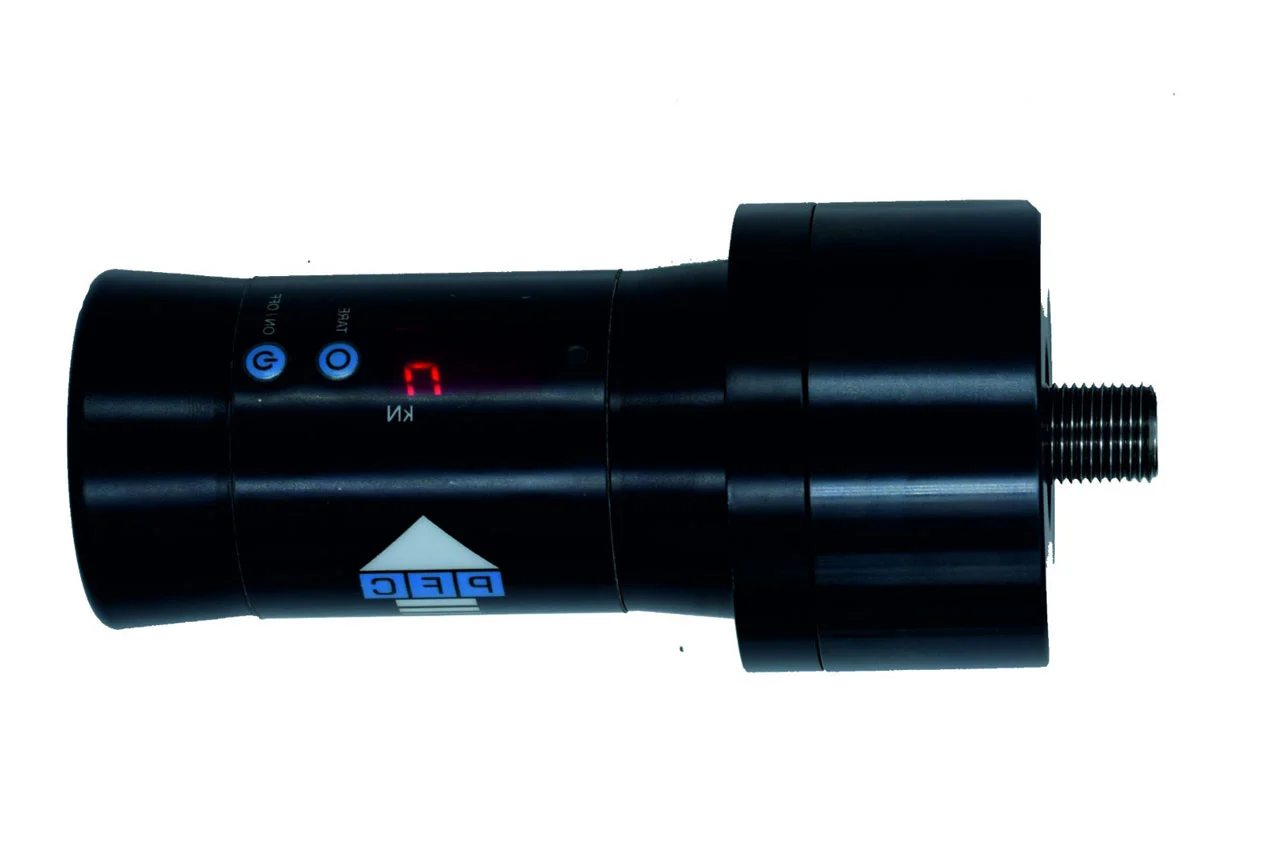

Pull Force Checker from Spintec Engineering Pvt Ltd is a battery powered hand held drawbar clamping force measuring gauge. The gauge is supplied in a hard case, and by touch of ON button ,it is ready to use. One gauge (either up to 20kN or 70 kN) with add on Adapter modules helps to measure machine tools with all types of spindle taper (BT (SK)/ BBT/ HSK taper) at your machine shop. It offers unique and affordable solution to monitor your machine tool drawbar clamping force. While measuring, the digital display on the gauge instantly shows the clamping force in kN. “
Product Gallery
Information
Unit Part Numbers
Specification
Part Number
20 kN
LM0010011
70 kN
LM0010021

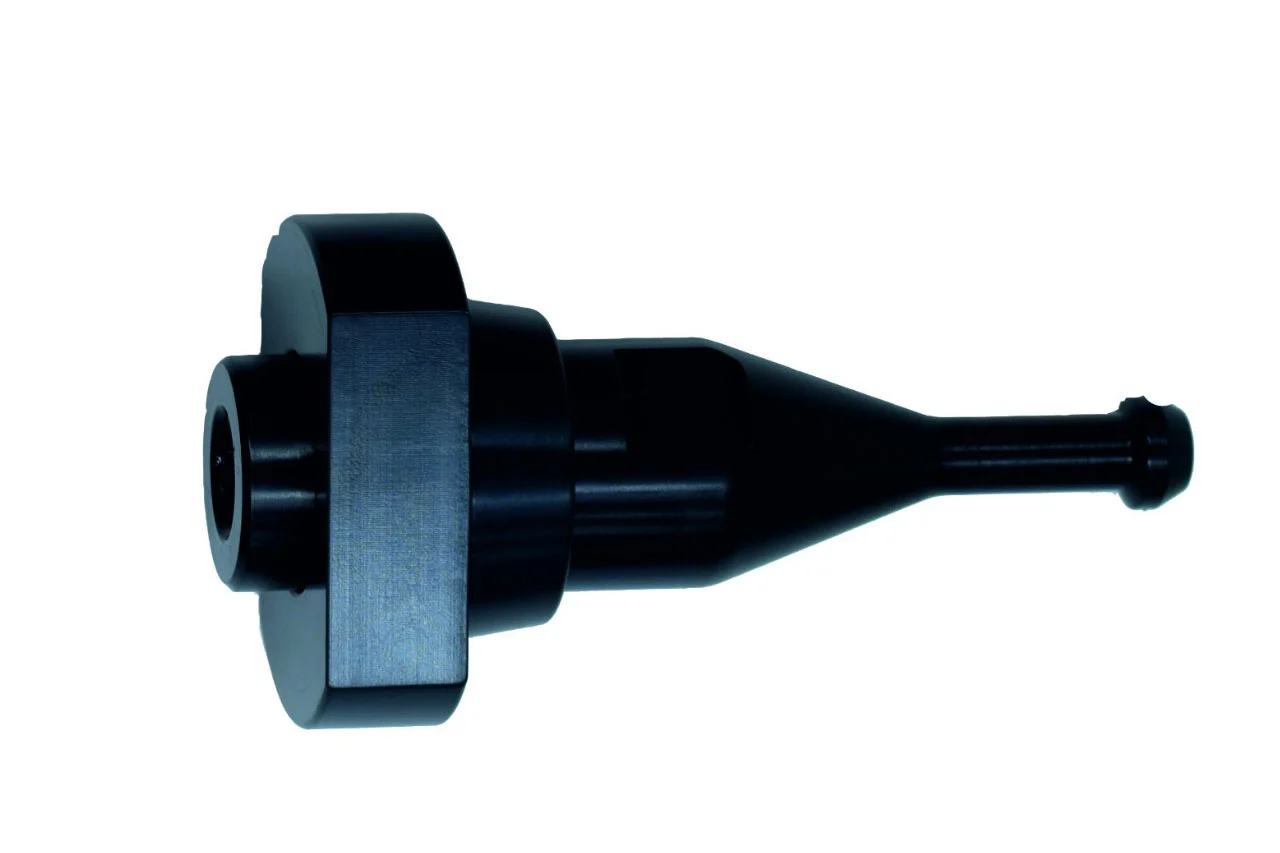

Adapter for Steep taper (SK or BT, BBT) Part Numbers
Nominal size
SK/ BT30
SK/ BT40
SK/ BT50
BBT30
BBT40
BBT50
DIN 69871 / 69872 ISO 7388 / 1 / 2 Typ A JIS B6339- 1992 (15°)
LS0010011
LS0010051
LS0010091
LS0010131
LS0010171
LS0010211
MAS 403-1982 BT / PT-2 (30°)
LS0010021
LS0010061
LS0010101
LS0010141
LS0010181
LS0010221
MAS 403-1982 BT / PT-1 (45°)
LS0010031
LS0010071
LS0010111
LS0010151
LS0010191
LS0010231
ANSI B 5.50- 2009/ CAT ISO 7388 / 1 / 2 Typ B (45°)
LS0010041
LS0010081
LS0010121
LS0010161
LS0010201
LS0010241

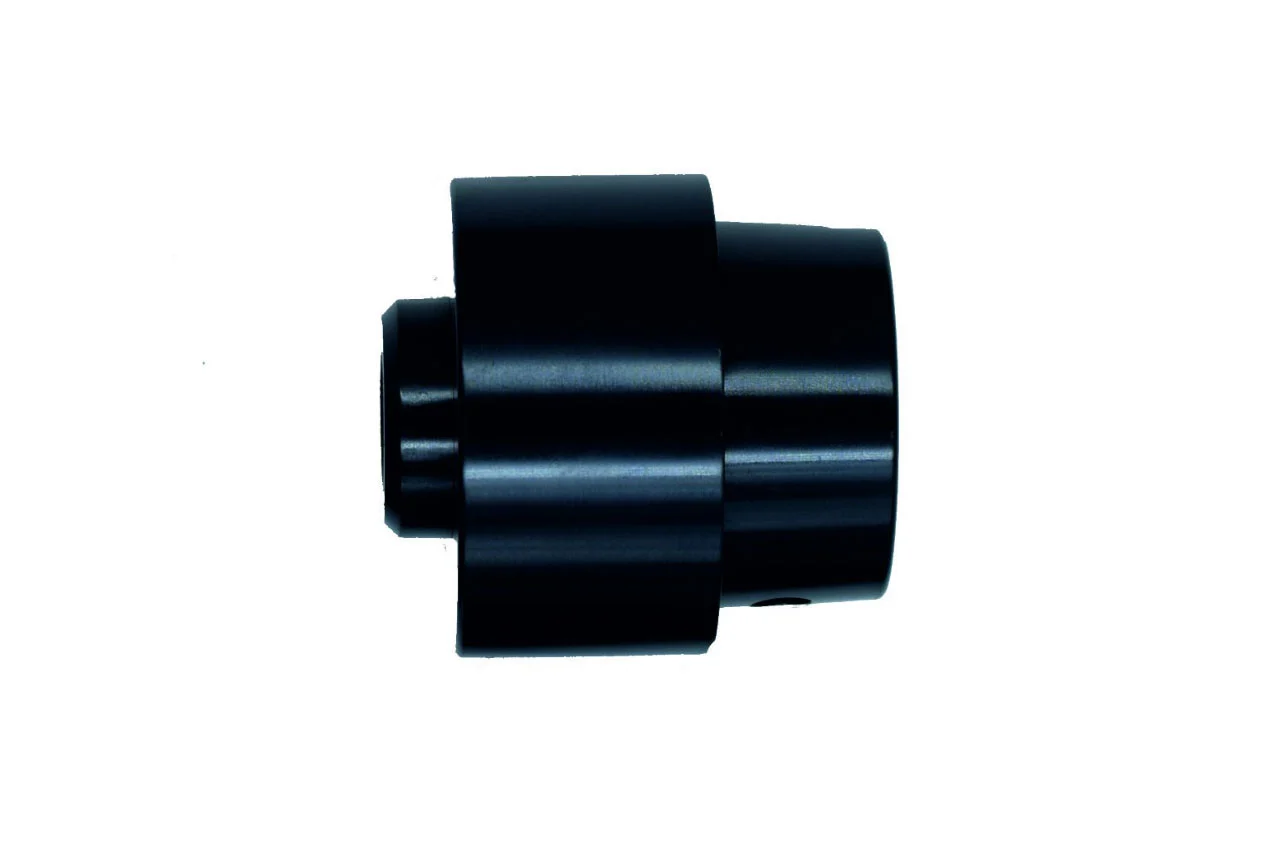

Adapter for HSK taper- Part Numbers
Nominal size
E25 / F32
A 32 / B 40
A 40 / B 50
A 50 / B 63
A 63 / B 80
A 80 / B 100
A 100 / B 125
Part Number
LS0010251
LS0010261
LS0010271
LS0010281
LS0010291
LS0010301
LS0010311
