About Us
Spintec Engineering Pvt Ltd, since 2012 has been doing precision parts manufacturing including spindle parts for various OEMs in ASEAN, Europe and India. Since 2019, company has started design, manufacturing, assembly and marketing of ZENSPINDLE the brand that encompasses belt drive, direct drive and integral motor spindles for various machine tool applications.
Spintec team strongly believes that to win customer trust, quality is the key. “Quality first” is a powerful mindset embedded within the Spintec team that prioritizes high standards and excellence in every aspect of design, manufacturing, assembly and customer service.
Spintec has its own R&D capabilities that is proved over the years in developing high speed spindles thanks to design expertise and diverse skill sets. Customer centric research is being followed, which allows to understand CNC machine performance needs and market trends.
90% of spindle parts are made at 15000 Sq ft factory in Coimbatore, India (except Spindle motor and Precision Bearings) and this helps to provide improved competitive advantage with out compromising quality. Our motto is to develop products that meet global standards while staying affordable.
Product Gallery
Information
Model No.
Spindle Taper
Max. Speed (rpm)
Clamping Force (kgs)
Front Bearing(mm)
Rear Bearing(mm)
Lubrication
Rated Torque (N-m)
Base Speed (rpm)
Rated Power(kW)
Voltage (V)
Jacket Cooling
Uncl. Pressure(bar)
rpm
kgs
mm
mm
N-m
rpm
kW
V
bar
A30TH1217A
BBT40
12,000
900
80
60
Grease
95.5
1500
15 / 18
220
Yes , Oil / Water
40 – 60 bar , hydraulic
A32TH1517A
BBT40
15,000
900
80
60
Oil – Air
95.5
1500
15 / 18
220
Yes , Oil / Water
40 – 60 bar , hydraulic
A32TH1525A
HSK A63
15,000
1,800
80
60
Oil – Air
95.5
1500
15 / 18
220
Yes , Oil / Water
40 – 60 bar , hydraulic

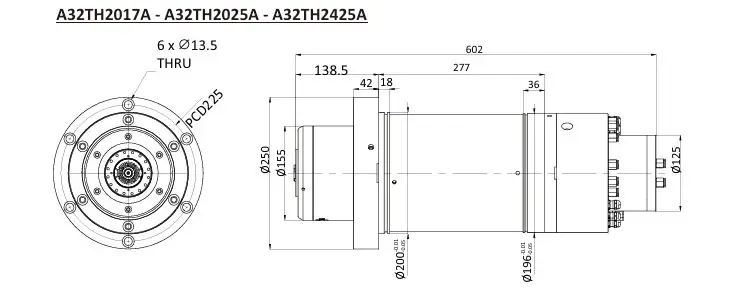

A32TH2017A
BBT40
20,000
900
70
55
Oil – Air
45.7
2300
11 / 15
220
Yes , Oil / Water
40 – 60 bar , hydraulic
A32TH2025A
HSK A63
20,000
1,800
70
55
Oil – Air
45.7
2300
11 / 15
220
Yes , Oil / Water
40 – 60 bar , hydraulic
A32TH2425A
HSK A63
24,000
1,800
70
55
Oil – Air
45.7
2300
11 / 15
220
Yes , Oil / Water
40 – 60 bar , hydraulic
Model No.
Spindle Taper
Max. Speed
rpm
Clamping Force
kgs
Front Bearing
mm
Rear Bearing
mm
Lubrication
Rated Torque
N-m
Base Speed
rpm
Rated Power
kW
Voltage
V
Jacket Cooling
Uncl. Pressure
bar
Model No.
A30TH1217A
Spindle Taper
BBT40
Max. Speed
12,000
Clamping Force
900
Front Bearing
80
Rear Bearing
60
Lubrication
Grease
Rated Torque
95.5
Base Speed
1500
Rated Power
15 / 18
Voltage
220
Jacket Cooling
Yes , Oil / Water
Uncl. Pressure
40 – 60 bar , hydraulic
Model No.
A32TH1517A
Spindle Taper
BBT40
Max. Speed
15,000
Clamping Force
900
Front Bearing
80
Rear Bearing
60
Lubrication
Oil – Air
Rated Torque
95.5
Base Speed
1500
Rated Power
15 / 18
Voltage
220
Jacket Cooling
Yes , Oil / Water
Uncl. Pressure
40 – 60 bar , hydraulic
Model No.
A32TH1525A
Spindle Taper
HSK A63
Max. Speed
15,000
Clamping Force
1,800
Front Bearing
80
Rear Bearing
60
Lubrication
Oil – Air
Rated Torque
95.5
Base Speed
1500
Rated Power
15 / 18
Voltage
220
Jacket Cooling
Yes , Oil / Water
Uncl. Pressure
40 – 60 bar , hydraulic
Product Gallery
Information
Model No.
Spindle Taper
Max. Speed (rpm)
Clamping Force (kgs)
Front Bearing (mm)
Rear Bearing (mm)
Lubrication
Rated Torque (N-m)
Base Speed (rpm)
Rated Power (kW)
Voltage (V)
No. of Poles
Jacket Cooling
Uncl. Pressure (bar)
rpm
kgs
mm
mm
N-m
rpm
kW
V
bar
A40TH1217B
BBT40
12,000
900
65
60
Grease
75.7
2300
18 / 21
220
6
Yes , Oil / Water
4 - 5 bar , Pneumatic
A42TH1817B
BBT40
18,000
900
65
60
Oil – Air
75.7
2300
18 / 21
220
6
Yes , Oil / Water
4 - 5 bar , Pneumatic
A40TH1225A
HSK A63
12,000
1,800
65
60
Grease
75.7
2300
18 / 21
220
6
Yes , Oil / Water
4 - 5 bar , Pneumatic
A42TH1825B
HSK A63
18,000
1,800
65
60
Oil – Air
75.7
2300
18 / 21
220
6
Yes , Oil / Water
4 - 5 bar , Pneumatic
Product Gallery
Information
Model No.
Spindle Taper
Max. Speed
Front Bearing
Lubrication
Rated Torque
Base Speed
Rated Power
Voltage
Jacket Cooling
Unc l. Pressure
rpm
mm
N-m
rpm
kW
V
bar

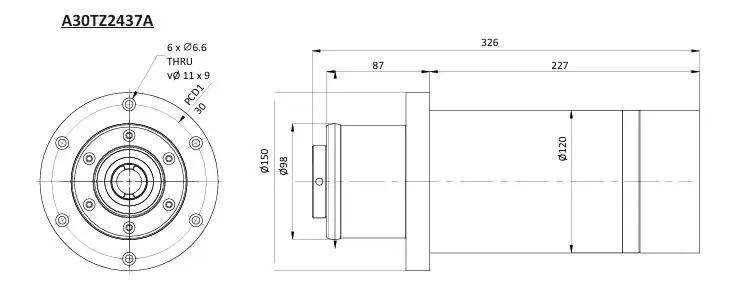

A30TZ2437A
HSK C40
24,000
45
Grease
5.3
9,000
5
200
Yes
Manual
A30TP2423A
HSK E40
24,000
45
Grease
5.3
9,000
5
200
Yes
5 bar, Pneumatic
Product Gallery
Information

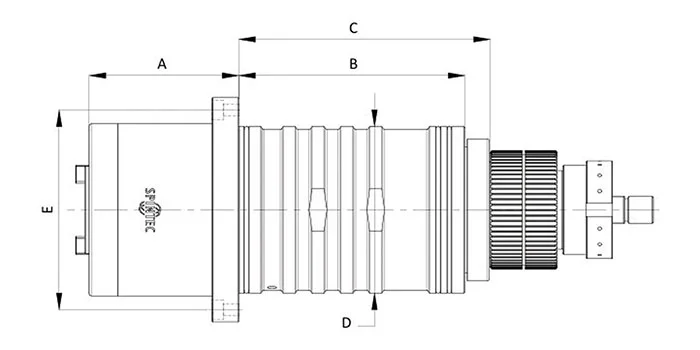

Drawing No.
A30CZ2006A
A30CH0817C
A30CH1017C
A30CH1217C
Taper Size
BBT 30
BBT 40
BBT 40
BBT 40
Bearing Size
50
70
70
70
Lubrication
Grease
Grease
Grease
Grease
Speed
20,000
8,000
10,000
12,000
A
48
139
139
139
B
190
204
204
204
C
-
422
332
332
D
110
150
150
150
E
127
180
180
180
Mounting Thread
4x M8
8x M10
8x M10
8x M10
Product Gallery
